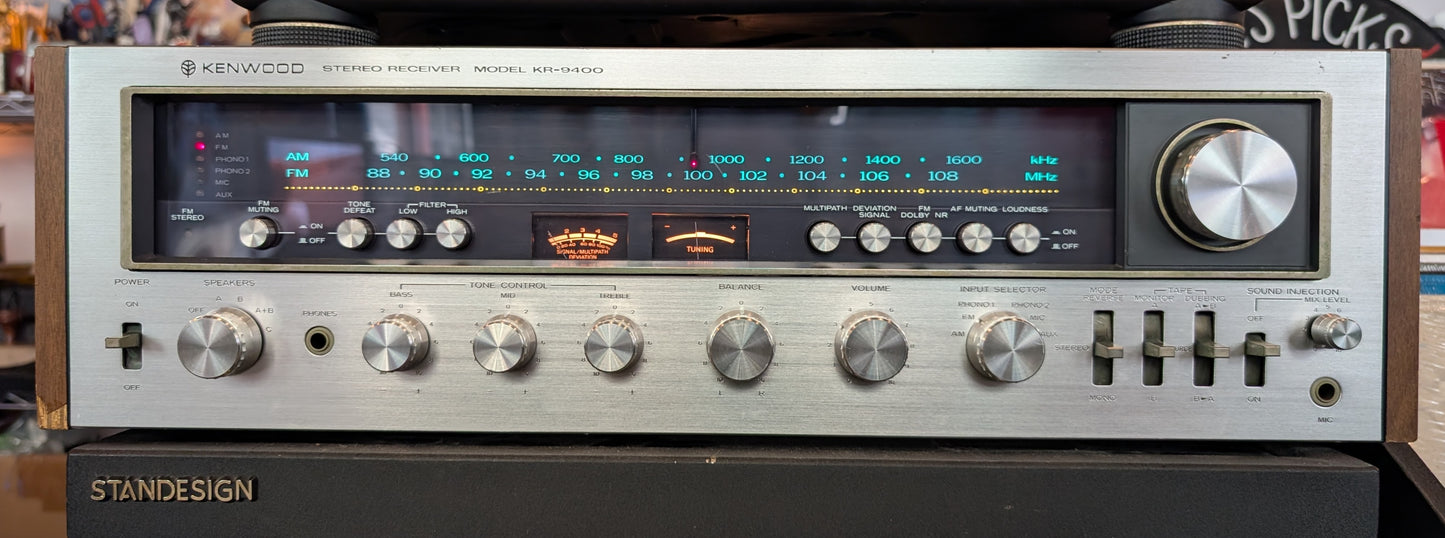

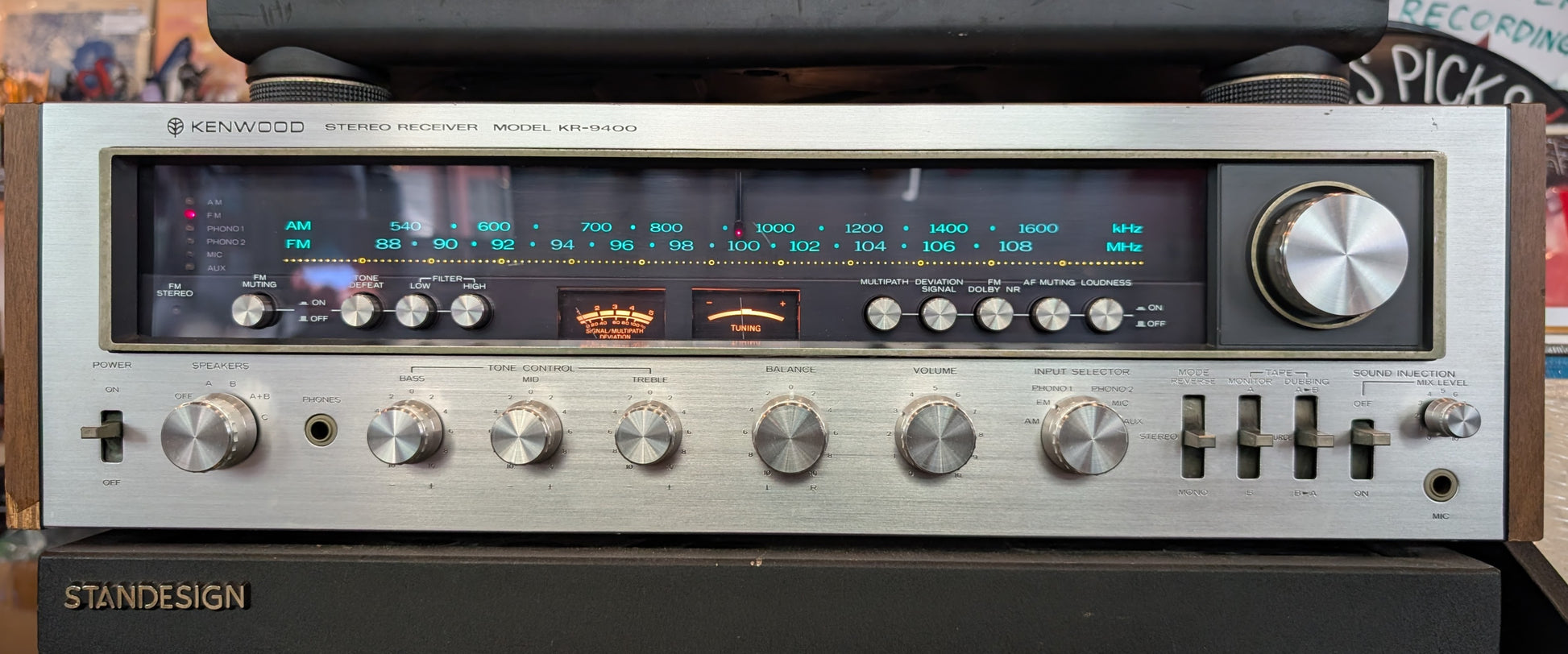

Vintage Kenwood KR-9400 Receiver *WORKING*

Specifications
Type: Post-WW2 AM/FM-receiver
Tuning range: AM, FM
Power output (8 Ohms): 2x 120 watts
Power output (4 Ohms): 2x 150 watts
Frequency response: 5 Hz to 40.000 Hz
Total harmonic distortion: > 0.1%
Damping factor: > 50 (8 Ohms)
Speaker impedance: 4 to 16 Ohms
Inputs: 2x Phono, 2x Tape, 1x Aux, 1x Mic, 1x Dolby NR
Input sensitivity, line: 150mV
Mic sensitivity: 2.5mV
Phono sensitivity: 2.5mV for MM
DIN sensitivity: 150mV
Signal to noise ratios: 65dB (mic), 70dB (mm), 93dB (line/DIN)
Tone controls (+/-10dB): 100 Hz, 800 Hz, 10.000 Hz
Loudness (+5/+8 dB): 100 Hz, 10.000 Hz
High filter (-5 dB): 10.000 Hz
Low filter (-8 dB): 100 Hz
Tone control bypass: bypass-defeat
Outputs: 2x Tape, FM quad radial, 6.3mm headphone jack
Line Output: 150mV (line), 30mV (din)
Power consumption: 750 watts (max.)
Dimensions: (W) 557 x (H) 166 x (D) 395 mm
Weight: 20.6 kg
Country of manufacture: Japan
Year: 1974-1976

More information on the history of the model here.

Please contact for additional photos and questions before purchasing. Thank you.
